Obba A Java Object Handler for Excel and OpenOffice.

Platform independent Spreadsheet Add-Ins with Client/Server Support .
Compatible with Excel/Windows, OpenOffice/Win/Mac/Linux, LibreOffice/Win/Mac/Linux, NeoOffice/Mac.
Version 3.0 (April 2012)

Download Installation Tutorial Documentation Licensing Developer Resources

About Obba

Schema of Obba Interaction: Obba provides access from the spreadsheet to objects created from classes of your library - without any additional coding. The spreadsheet and Obba JVM may run on different machines.

Obba provides a bridge between spreadsheets and Java classes. With Obba, you can use spreadsheets as GUIs (Graphical User Interfaces) for your Java libraries. Its main features are:

Stateful access to almost all objects and methods running in a Java virtual machine via a fixed set of spread sheet functions.
Client/server support: The Java virtual machine providing the add-in may run on the same computer or a remote computer - without any change to the spreadsheet.
Loading of arbitrary jar or class files at runtime through a spreadsheet function.
Instantiation of Java objects, storing the object reference under a given object label.
Invocation of methods on objects referenced by their object handle, storing the handle to the result under a given object label.
Asynchronous method invocation and tools for synchronization, turning your spreadsheet into a multi-threaded calculation tool.
Allows arbitrary number of arguments for constructors or methods (avoids the limitation of the number of arguments for Excel worksheet functions).
Serialization and de-serialization (save Serializable objects to a file, restore them any time later).
All this through spreadsheet functions, without any additional line of code (no VBA needed, no additional Java code needed).

Use cases:

For Spreadsheet Users: Creating powerful spreadsheet calculations using external libraries, running calculations in Java.
For Java Developers: Testing, debugging and analyzing Java libraries with spreadsheets. Setting up unit test in spreadsheets. Using spreadsheets as GUI to your object while debugging.

For a tutorial see Obba tutorial. In this tutorial you create a Java class and a corresponding spreadsheet to fetch stock quotes from finance.yahoo.com.
For a more detailed introduction see Obba documentation.

Advantages

No Glue Code

Obba is different from interfaces such as XLL4J, XLW, ExcelDNA, etc. in that it requires no glue code to link the spreadsheet to the library. Objects are instantiated by their original constructor. A spreadsheet-specific factory method is not necessary.

Tracking Objects

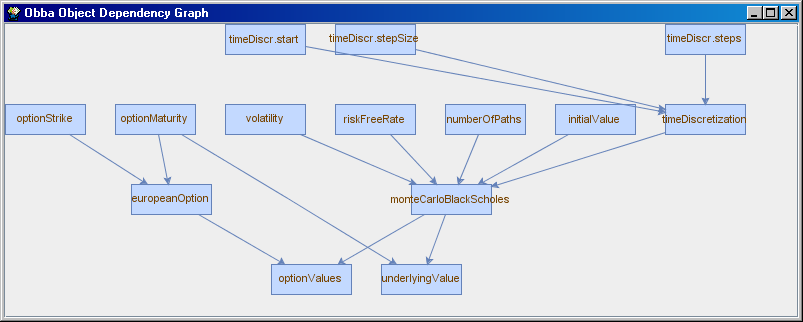

The Obba object dependency graph.

Since objects are instantiated through the Obba functions and handled by Obba handles, Obba knows the object you are referencing in your spreadsheet. This allows tracking which objects are used as well as (implicitly) their dependencies.

Platform Independent

The Obba spreadsheet functions are available in Excel (running on Windows), in OpenOffice and LibreOffice (running on Windows, Mac OS X, Linux, etc.) and in NeoOffice (running on Mac OS X). Hence, if your external library is platform independent, your spreadsheet is platform independent too (within the platforms supported by OpenOffice, assuming that your spreadsheet does not rely on technologies other than OpenOffice, Obba and your library).

Example: Creating an Object and Calling a Method on that Object

Spreadsheet functions…

Construction of java.util.Date object in spreadsheet cell A1 (for example):

			Spreadsheet (cell A1) (Excel/OpenOffice)

			= obMake("dateObject","java.util.Date")

Invocation of method toString (having no arguments), on the object created in cell A1, storing the result of the method under the object label dateString.

			Spreadsheet (Excel/OpenOffice)

			= obCall("dateString",A1,"toString")

…correspond to Java code.

This corresponds to the Java code

			Java

			import java.util.Date;

			Date dateObject = new Date();

			String dateString = dateObject.toString();

Licensing

Obba is not free software or open source, but it is available at no charge for non-commercial use and in the event that we cease maintaining the software, any licensee will be permitted access to the source code. Additionally, all updates for a period of one year are included free of charge to anyone purchasing a license.

We offer a regular license and a developer license on a per user or a per year basis.

If you acquired a regular license, we grant the use of Obba for commercial purposes, with no right to modify or redistribute Obba.

If you acquired a developer license, we grant you ("the Third Party Developer") the redistribution of Obba together with the Ice components (Ice.jar and Ice.dll) included in Obba with your own products, provided that you do not modify Obba (the class files within Obba.jar) and provided that you do not use the Ice components (Ice.jar and Ice.dll) and comply with the Ice license agreement included in Obba.zip. End users shall not be permitted to modify or distribute any part of your product(s) using Obba.

Obba is provided under the terms stated in the LICENSE.txt file, distributed in the Obba.zip file.

The following pricing applies to Version 3.x.

Per User License (Individual License)

Trial/shareware license
free	The unregistered version may be used for a trial period of 30 days. After this period, you may use the unregistered version for personal, non-commercial use only. Note: The unregistered version starts with a splash screen, which will disappear within a few seconds.
Regular license for personal/private use:
	Donationware. To acquire a license for personal / private use donate an arbitrary amount via PayPal.
Regular license for commercial/corporate use:
	The regular license for commercial and/or corporate use is 29 Euro per user, payable via PayPal.
Developer license for commercial/corporate use:
	The developer license for commercial and/or corporate use is 49 Euro per developer, payable via PayPal.

Per Year License (Site License)

Regular site license for commercial/corporate use:
	The site license is 99 Euro per year, payable via PayPal.
Developer site license for commercial/corporate use:
	The developer site license is 199 Euro per year. Pay via PayPal.

Note: Please retain your PayPal notification of payment as proof of purchase.

Download, Installation and System Requirements

Download

Obba is distributed as a ZIP archive - Obba.zip. Current version is 3.0.8 (April, 2012). (release notes)

Installation

To install Obba:

Download and unzip the Obba.zip archive.
To install Obba for Excel/Windows:
1. Open the folder "Obba for Excel for Windows"
2. Launch "Install Obba.exe".
To install Obba for OpenOffice:
1. Open the folder "Obba for OpenOffice"
2. Open "Obba.oxt".

Install complete! Now, try one of the demos in the Demos folder.

Note: To use the client / server feature you need to perform a small additional installation step, see

Documentation: Installation and Setup.

Note: If have Obba for OpenOffice 2.x installed you need to remove it first! You cannot use the OpenOffice Updater to Update Obba 2.x to Obba 3.x.

System Requirements

When using Obba with Excel:

Java 1.5 Runtime or better (tested with JRE 1.7.0_02 64 bit).
Microsoft Windows XP or better (tested with Windows XP, Windows 7 x86 and Windows 7 x64)).
Microsoft .NET Framework 3.5 (included in Windows Vista and Windows 7) (if this is missing, Microsoft offers an installer).
Microsoft Excel 2000 for Windows or better (tested with Excel 2000, Excel 2007, Excel 2010, Excel 2010 (x86 and x64).

Note: Obba 3.x is no longer compatible with Windows 2000 (due to the absence of a .Net 3.5 framework). Please contact us at info@obba.info if you need a version of Obba for Windows 2000.

When using Obba with OpenOffice:

OpenOffice 3.x with Java 1.5 Runtime or better (any platform)

Also runs with LibreOffice and NeoOffice.

First Steps, Documentation

First Steps

Once Obba is installed, it is available in Excel/OpenOffice after launching. For examples of how to use Obba take a look at the files in the Demos folder.

We recommend that you first try out the Date Demo, which uses java.lang.Date to demonstrate object instantiation and method invocation. It also gives an example of transient object handles.

Next, try the Normal Distribution Demo. It loads an external jar (here Apache's commons-math.jar) and uses a class from it to calculate the cumulative normal distribution. There are two versions of this Excel sheet: the one entitled "concurrent" invokes the calculations concurrently.

When developing new sheets it is helpful to open the Obba log window. See Obba Control Panel: Windows. Note: The Obba Control Panel is not available under Mac OS X due to a bug in OpenOffice. You may see the Obba log messages in the OS X Console application.

Documentation

Documentation is available online. You may also access the Obba documentation offline via the Obba control panel's "Help" menu.

Version History (selected)

For a detailed version history see the release notes.

Version 2.2 -> 3.0:

Complete rewrite of the spreadsheet add in part for Excel and OpenOffice/LibreOffice.
Obba server, i.e., the JVM, now running in separate process.
Obba server may be launched with custom arguments.
Client/Server support: Obba server process may run on different machine.

Version 2.1 -> 2.2:

Added features for developers to allow bundling of Obba with your own sheets and JARs and/or white labeling. See the Obba developer page.

Version 1.9 -> 2.1:

Complete rewrite of Obba logging giving you better diagnostic output.
Log window accessible from the Obba Control Panel.
New features like easier instantiation of Java arrays and access to Java arrays.

Version 1.8 -> 1.9:

Visualization of the object (implicit) dependency graph. Visualizes object and the arguments used to create them.
Better handling of transient object labels.
Significant performance improvements.

Version 1.7 -> 1.8:

Obba no longer needs administrator privileges. It is installed in a user-specific location (%APPDATA%\Obba).
Significant performance improvements.

Developer Documentation

The developer documentation provides instructions on how to bundle Obba with your application (i.e., how to build your own installer). This includes automatic installation of a registration code.

Performance

Note: The following applied to Obba 2.2.15. Performance of Obba 3.x is a bit slower due to tcp/ip communication overhead and will be optimized in the coming releases.

Obba for OpenOffice handles 10000 spreadsheet function calls (e.g., object instantiation (obMake), method invocation (obCall), or result conversion (obGet)) in 4 seconds on a 2.5 GHz Core 2 Duo. Performance is slower if the Control Panel is visible (GUI updates on 10000 objects will add another 2 seconds) or if logging is enabled (adding another 2 seconds)

Obba for Excel is a bit slower overall, and Control Panel updates are significantly slower in Obba for Excel.

The following table gives an overview.

Setting		Time for 10000 Calls
Control Panel	Logging	OpenOffice 3.2	Excel
off	off	4 sec	6 sec
on w/ slow update	off	5 sec	8 sec
on w/ normal update	off	6 sec	18 sec
off	on	7 sec	9 sec
on w/ slow update	on	8 sec	12 sec
on w/ normal update	on	10 sec	25 sec

Obba's default configuration is Control Panel: off, Logging: on.

Feedback and Feature Requests

Please send feedback and feature requests to info@obba.info.
